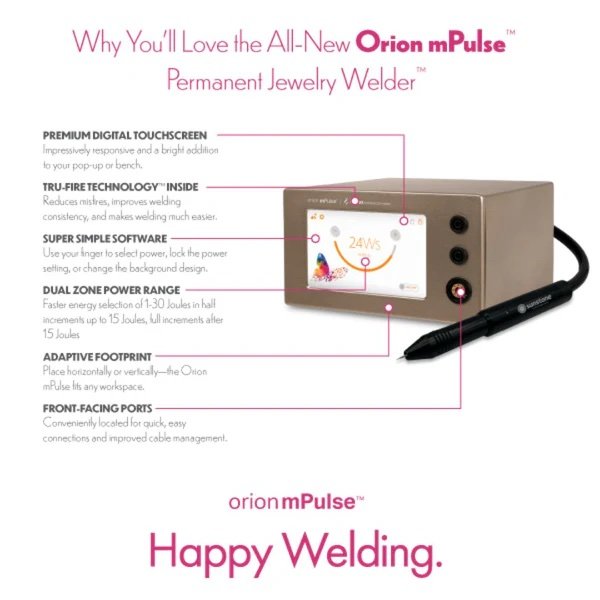

Introducing the All-New Orion mPulse™
The finest pulse arc and permanent jewelry welder™ in its class.
Here's what you will love about the new Orion mPulse™:
Front-facing Stylus and Ground Ports
3 Ground Ports—Two in the Front, One in the Back
Adaptive Footprint—Place Horizontally or Vertically
Resigned Stylus for Unmatched Durability
Tru-Fire Technology™ Inside
1-30 Joule Dual Zone Power Range
Built-in Power Supply
Advanced Digital Touchscreen Display
14 Software Backgrounds
Updateable Software
Vinyl Skins for a Unique Look—Available Soon!
3-Year Warranty
Front-Facing Ports
The Orion mPulse provides easier access to cable ports by placing the stylus and grounding ports on the front of the welder. You can connect the stylus and the ground quickly.
Adaptable Footprint
For remote events, match the Orion mPulse’s footprint to your table setup by choosing to place the welder horizontally or vertically. And, with the power supply built into the welder, you will find cable management much easier to resolve.
Tru-Fire Technology™ Inside
The Orion mPulse includes Tru-Fire Technology™, which greatly reduces misfires and improves welding consistency with advanced software. At low energy levels (when welding with jump rings and fine chain) Tru-Fire Technology™ automatically adjusts energy flow based on the strength of the ground (how well the electrode is making contact with the jump ring or workpiece). Experienced & new permanent jewelry welders alike will notice how much more responsive & easier to use the Orion mPulse is than other welders.
Advanced Digital Touchscreen
Sunstone equipped the Orion mPulse with a more responsive touchscreen display. You'll find it easier to select power and access other controls. You will appreciate the responsiveness and ability to choose from 14 different software backgrounds. And those who explore the software thoroughly will find other fun surprises!
Dual Zone Power Range
Dial into desired power ranges faster thanks to the Orion mPulse's Dual Zone Power Range. Under 15 Joules, the welder displays energy settings in half-Joule increments. At 15 or more Joules, the welder displays energy settings in full Joule increments, which simplifies the energy selection task. For small repair applications requiring 15 or more Joules, half-Joule settings are generally irrelevant. However, for permanent jewelry applications, half-Joule settings are important to achieve optimum welds.
Keep Software Up to Date
The advanced software on the new Orion mPulse can be updated when new software versions become available. A USB port on the back panel makes upgrades easy.
Optics: You Have Many Options
The Orion mPulse is compatible with all optics offered by Sunstone:
5x Arm Microscope
5x PJ Scope
Upgraded ADL with Clear Screen
Basic ADL
Certified Safe
Most Orion® permanent jewelry welders are ETL and CE certified now or in the process of becoming certified. ETL certification includes ASME, ASTM, ANSI, CSA, NFPA, NOM, NSF, and UL testing.
Specifications
Power Range: 1-30 Joules with Dual Zone Power Range
Tru-Fire Technology™ Included
Footprint: 18.7 x 18.3 x 10.4 cm
Weight: 4 lbs.
Estimated Weld Spot Diameter Range: ~0.5 to 1.5 mm
Touchscreen: 5" 10-point Touch HMI
Welds Per Second: 1
Grounding Ports: 3
Gas: 1/4"
USB Port
